Project Tutorial
This tutorial overviews how to use the data provided using the HCI display.
The data, captured by a depth camera, includes information about the pose of pedestrians. By the end of this tutorial, you will:
- be able to connect to the HCI display
- access and view the raw pose data
- interpret and use the raw data through simple web application
- create a simple visualization of the data
Display Functionality
- Dante: group detection
- Azure Kinect: body pose tracking
- Input: depth camera image, video, image list
- Output: basic RGB image with keypoint display/saving (e.g., PNG, JPG, AVI), keypoint saving (JSON)
Tutorial Contents
- Server Names
- Tools Before Starting
- Creating a Simple Website
- Websocket Connections
- Understanding the Data
- Seeing the Camera View
- Creating a Visualization
- Recording Data
- Demos
- Upload Your Project
Server Names
In this guide, the placeholders [Server_Name] must be set to either your local computer’s IP address, for development, or the hostname of your assigned display, taken from this list:
- Display 1, Location: AKW
- Server_Name:
cpsc484-01.yale.internal
- Server_Name:
- Display 2, Location: Becton
- Server_Name:
cpsc484-02.yale.internal
- Server_Name:
- Display 3, Location: Davies Auditorium
- Server_Name:
cpsc484-03.yale.internal
- Server_Name:
- Display 4, Location: 17 Hillhouse
- Server_Name:
cpsc484-04.yale.internal
- Server_Name:
- For example, to view the live data currently being shown on a given a display with
[Server_Name], on your local computer, open your browser to:https://[Server_Name]:8888. For Display 1, the link is http://cpsc484-01.yale.internal:8888/
Note that when substituting
[Server_Name]in the URL, you should replace the whole text, including the brackets[]with the corresponding display hostname.
Tools Before Starting
This tutorial aims to be independent of whichever operating system and web browser you prefer or are using. However, there may be some nuanced differences in how objects are displayed and connections made.
-
An Integrated Development Environment (IDE) for source code editing and syntax highlighting. Some recommendations include Visual Studio Code, Sublime Text, or Notepad++.
-
Connection to the Yale Virtual Private Network (VPN). Many of Yale’s digital resources, including the data from the HCI displays, are only accessible by connecting to the VPN. Follow these set up instructions if you don’t already have the VPN installed or want to know more about how to use the VPN.
Creating a Simple Website
Using HTML (a standard markup language for creating websites) and CSS (a language that describes the style of an HTML document), we can create a simple website. In a file called index.html:
<!DOCTYPE html>
<html>
<head>
<title>HCI Tutorial</title>
</head>
<body>
<!-- page content goes here -->
</body>
</html>
Using JavaScript (a language to program the behavior of web pages), we’ll import jQuery (a JavaScript library that can simplify event handling for our project). Download the compressed jQuery file from code.jquery.com and save it in your local directory containing your previously created HTML file.
...
<body>
<!-- page content goes here -->
<script src = "https://ajax.googleapis.com/ajax/libs/jquery/3.2.1/jquery.min.js"></script>
<script src="main.js" type="text/javascript"></script>
</body>
...
You’ll also notice our import of main.js in the code snippet above. Create an empty JavaScript file in your local directory called main.js. The code that goes in here will allow us to access the raw data from HCI display and communicate it to our HTML page.
Websocket Connections
The WebSocket protocol allows us to continuously exchange data between the browser and server through a persistent connection (that is, without breaking the connection and without additional HTTP-requests).
In main.js, create a new WebSocket using the special protocol ws in the url. Any data we’ll need from the HCI display can be accessed through the IP and port address [Env_IP]:8888.
var socket = new WebSocket("ws://[Server_Name]:8888/frames");
For example, substituting the [Server_Name] of Display 1, the whole connection string is:
var socket = new WebSocket("ws://cpsc484-01.yale.internal:8888/frames");
Opening the index.html file in your browser currently will not show anything happening. However, if you right-click in the browser and ‘Inspect’ the page source, you can view the status of this websocket connection under the ‘Network’ tab.
The following expansion on this code snippet creates a connection to [cpsc484-01.yale.internal]:8888/frames and prints the details of each raw frame collected by the Kinect camera on the HCI display.
var host = "cpsc484-01.yale.internal:8888";
$(document).ready(function () {
frames.start();
});
var frames = {
socket: null,
start: function () {
var url = "ws://" + host + "/frames";
frames.socket = new WebSocket(url);
frames.socket.onmessage = function (event) {
frames.show(JSON.parse(event.data));
}
},
show: function (frame) {
console.log(frame);
}
};
In addition to /frames, you can subscribe to /depth for the raw depth image and to /twod for an image with pose information overlaid on the depth image.
You can confirm that you’re successfully connected by inspecting the page and checking that the ‘Status’ column for the site you’re connecting to displays a status code of 101.
Selecting the connection name in the left menu will provide you more information about the connection header and the overall connection status:
Finally, in the ‘Console’ tab, you can view the current stream of the raw keypoints from each frame.
Understanding the Data
Each /frame has information about the people the camera can currently see. If there are two or more people and their orientation can be detected, group information is also provided.
Keypoints
Pose information for each person is provided as keypoints (positions of a person’s joints), as shown in the following image:
Where the index in the image corresponds to the joint name:
| Index | Joint name | Parent joint |
|---|---|---|
| 0 | PELVIS | - |
| 1 | SPINE_NAVAL | PELVIS |
| 2 | SPINE_CHEST | SPINE_NAVAL |
| 3 | NECK | SPINE_CHEST |
| 4 | CLAVICLE_LEFT | SPINE_CHEST |
| 5 | SHOULDER_LEFT | CLAVICLE_LEFT |
| 6 | ELBOW_LEFT | SHOULDER_LEFT |
| 7 | WRIST_LEFT | ELBOW_LEFT |
| 8 | HAND_LEFT | WRIST_LEFT |
| 9 | HANDTIP_LEFT | HAND_LEFT |
| 10 | THUMB_LEFT | WRIST_LEFT |
| 11 | CLAVICLE_RIGHT | SPINE_CHEST |
| 12 | SHOULDER_RIGHT | CLAVICLE_RIGHT |
| 13 | ELBOW_RIGHT | SHOULDER_RIGHT |
| 14 | WRIST_RIGHT | ELBOW_RIGHT |
| 15 | HAND_RIGHT | WRIST_RIGHT |
| 16 | HANDTIP_RIGHT | HAND_RIGHT |
| 17 | THUMB_RIGHT | WRIST_RIGHT |
| 18 | HIP_LEFT | PELVIS |
| 19 | KNEE_LEFT | HIP_LEFT |
| 20 | ANKLE_LEFT | KNEE_LEFT |
| 21 | FOOT_LEFT | ANKLE_LEFT |
| 22 | HIP_RIGHT | PELVIS |
| 23 | KNEE_RIGHT | HIP_RIGHT |
| 24 | ANKLE_RIGHT | KNEE_RIGHT |
| 25 | FOOT_RIGHT | ANKLE_RIGHT |
| 26 | HEAD | NECK |
| 27 | NOSE | HEAD |
| 28 | EYE_LEFT | HEAD |
| 29 | EAR_LEFT | HEAD |
| 30 | EYE_RIGHT | HEAD |
| 31 | EAR_RIGHT | HEAD |
Note that only the joints that can be detected by the camera are sent in a given /frame.
Units
All distances are given in Millimeters.
3D Frame of Reference

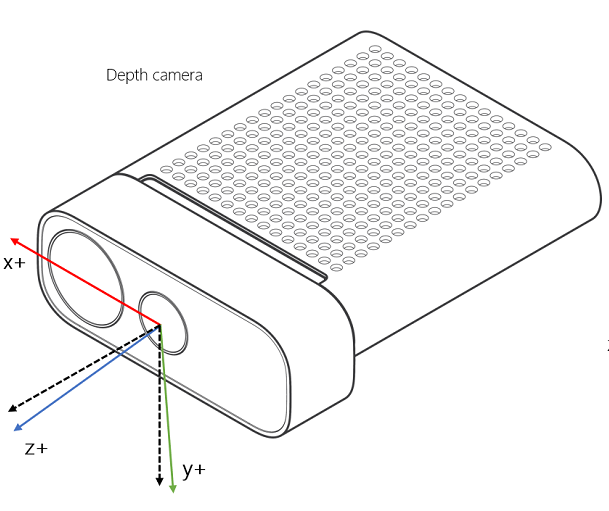

Since we wish to localize people not only within the 2D image, but within the 3D world as well, we use the depth camera on the display to approximate a 3D coordinate point for each joint. Every coordinate point must be relative to some “coordinate frame.” For the data here, the coordinate frame is that of the camera. All 3D coordinates in the data are relative to this coordinate frame:
This tutorial from the camera manufacturer provides more information about the camera’s coordinate frame.
TV Frame
For those building interactive systems, the location of the TV relative to the camera may be important.
The center of the TV is approximately 450 in the positive Y direction (e.g. below) the camera.
An Example Data Point
To understand what each field in the /frame means, read through this example. See the #comments below for a detailed description of each field:
{
